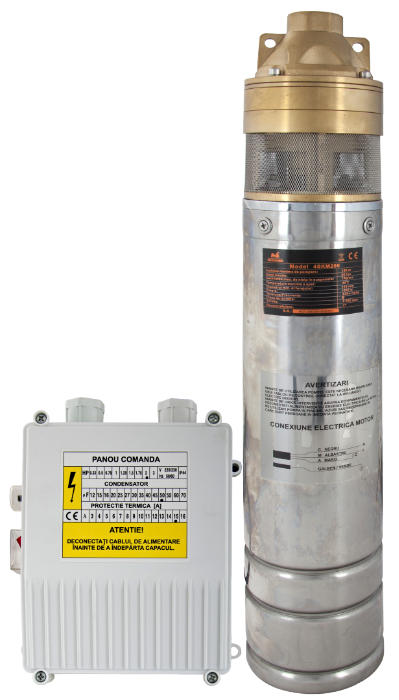

This submersible pump is designed for extracting clean water from drilled boreholes or wells, at medium or great depths.
Thanks to its multistage design and series-mounted impellers, this pump generates high pressure and ensures a stable flow rate.
Thanks to its 4” diameter it is compatible with most casings used in drilled wells, ensuring easy handling and installation.
With a power of 750 W, the submersible pump can lift water up to a maximum head of 58 m, providing a maximum flow rate of 46 L/min.
The stainless steel body offers superior corrosion resistance, longer service life and increased reliability, making the pump ideal for long-term use in outdoor humid conditions.
The control panel is the key element for controlling and protecting the submersible pump, ensuring safe and efficient operation of the equipment. It allows easy operation of the pump and protects the motor against overloads or possible electrical faults thanks to the fuse. The panel is equipped with a main ON/OFF switch, clearly visible and easily accessible, which allows quick and safe starting and stopping of the pump.
Technical data:
Rated power: 750 W
Maximum immersion depth: 50 m
Maximum pumping head: 58 m
Maximum flow rate: 46L/min Maximum pressure: 5.8 bar
Power cable length: 10 m
Maximum temperature of pumped liquid: 40 °C
Connection: 1”
Protection rating: IP54
Do not use the product to extract hydrocarbons (fuels, oils, solvents, etc.) or other liquids!
